Successful trial of testing type flat vulcanizing machine for SGS Switzerland
- 2021-10-29 11:14:58
Recently, Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd. to Switzerland SGS company production of testing flat vulcanizing machine test success.
SGS is a leading international company providing quality and integrity services around the world. With more than 95,000 employees, SGS operates a network of over 2,400 offices and laboratories around the world.
My company to SGS production of testing standard plate vulcanizing machine, in line with GB/T 25155-2010 implementation standards, according to SGS company requirements, the plate vulcanizing machine belongs to heating and cooling integrated machine, temperature uniformity ±2 degrees, PLC touch screen automatic control.

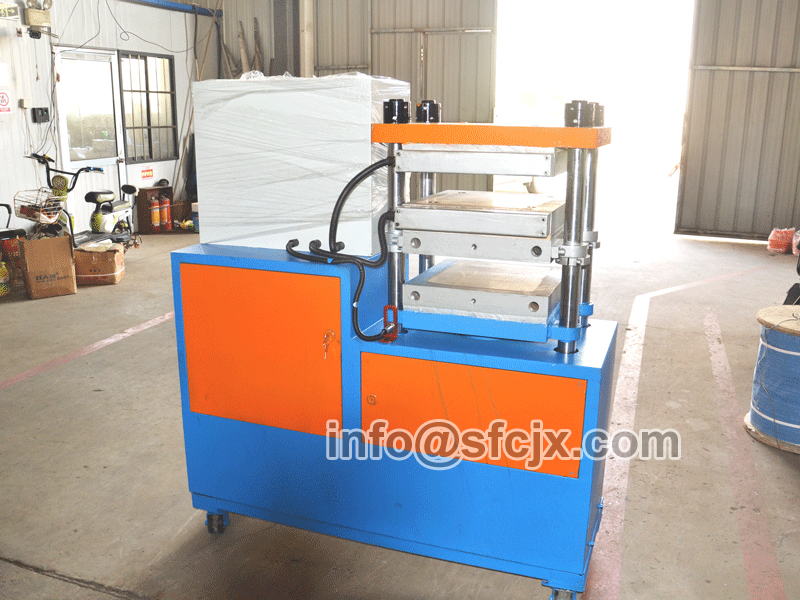

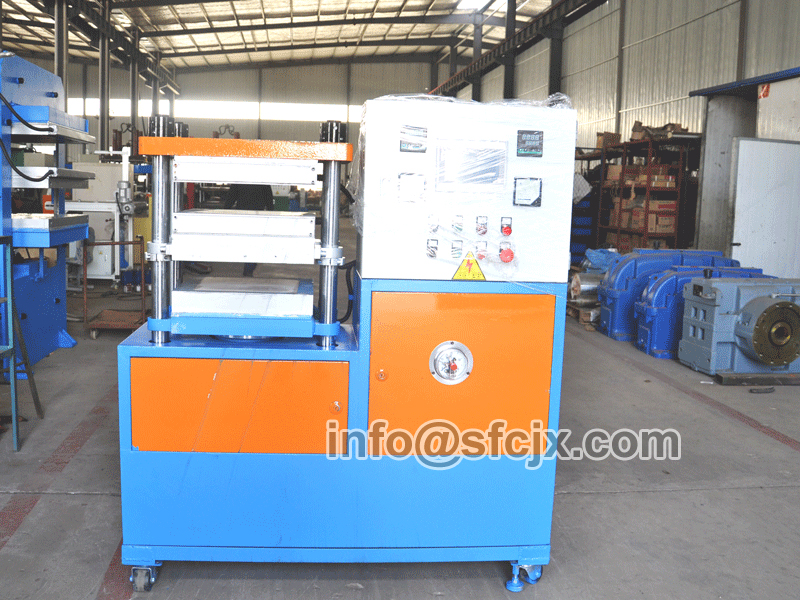

After professional design and manufacturing, our company for SGS company production of testing flat vulcanizing machine has been successfully tested, the following is the main technical parameters of the type of flat vulcanizing machine:
Item | single bit | parameters and technical specifications
|
Maximum liquid pressure | MPa | 16.0 |
Electric heating plate | unit | 2 |
Cooling plate | unit | 2 |
Working layers
| layers | One each layer
|
Upper hot plate heating mode
| Electric heating | |
Maximum working temperature of hot plate | ℃ | 300 |
Temperature uniformity | ±2℃ | |
The lower hot plate cooling mode | water cooling | |
Opening and closing die speed | mm/s | ≥12 |
Structure type | column type | |
Electric control system | PLC touch screen automatic control, realize manual/automatic mutual switch | |
Hydraulic control system
| The machine has automatic exhaust, automatic pressure, curing timing, automatic constant temperature, alarm, automatic die opening and other functions. | |
