Application:

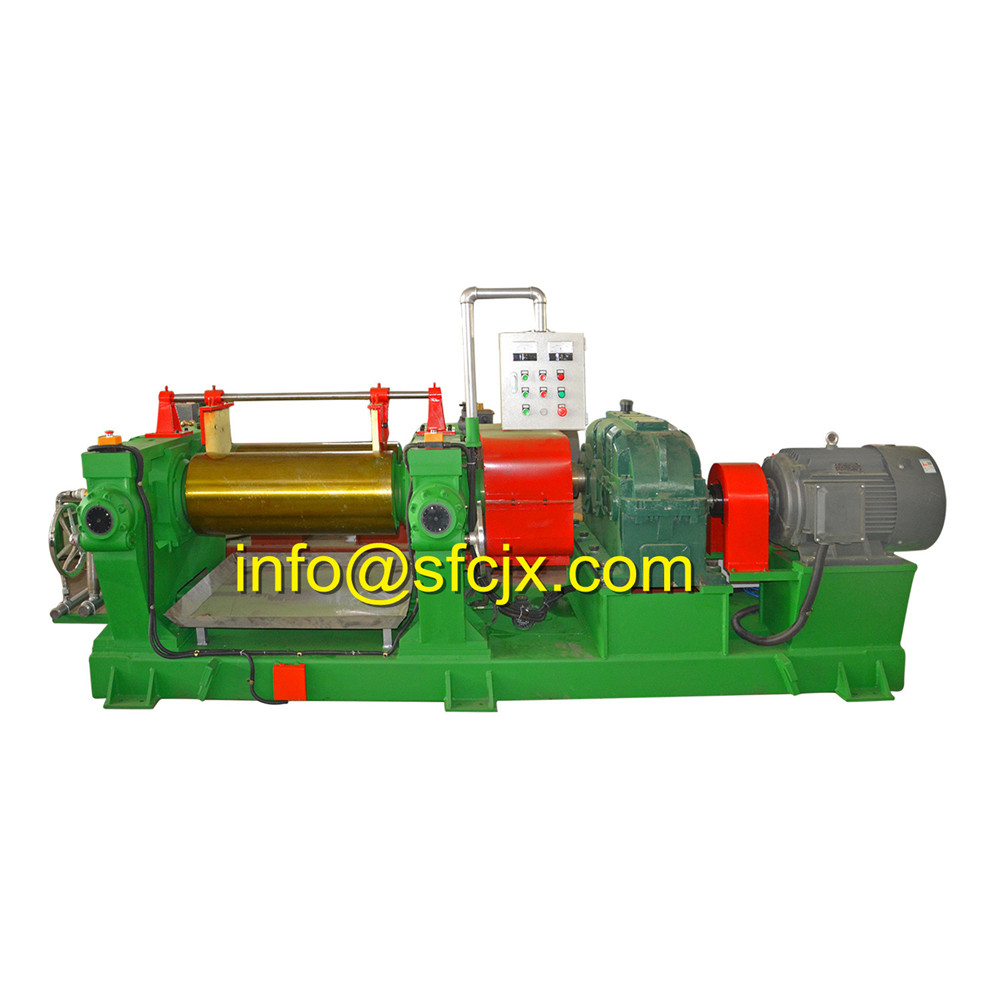

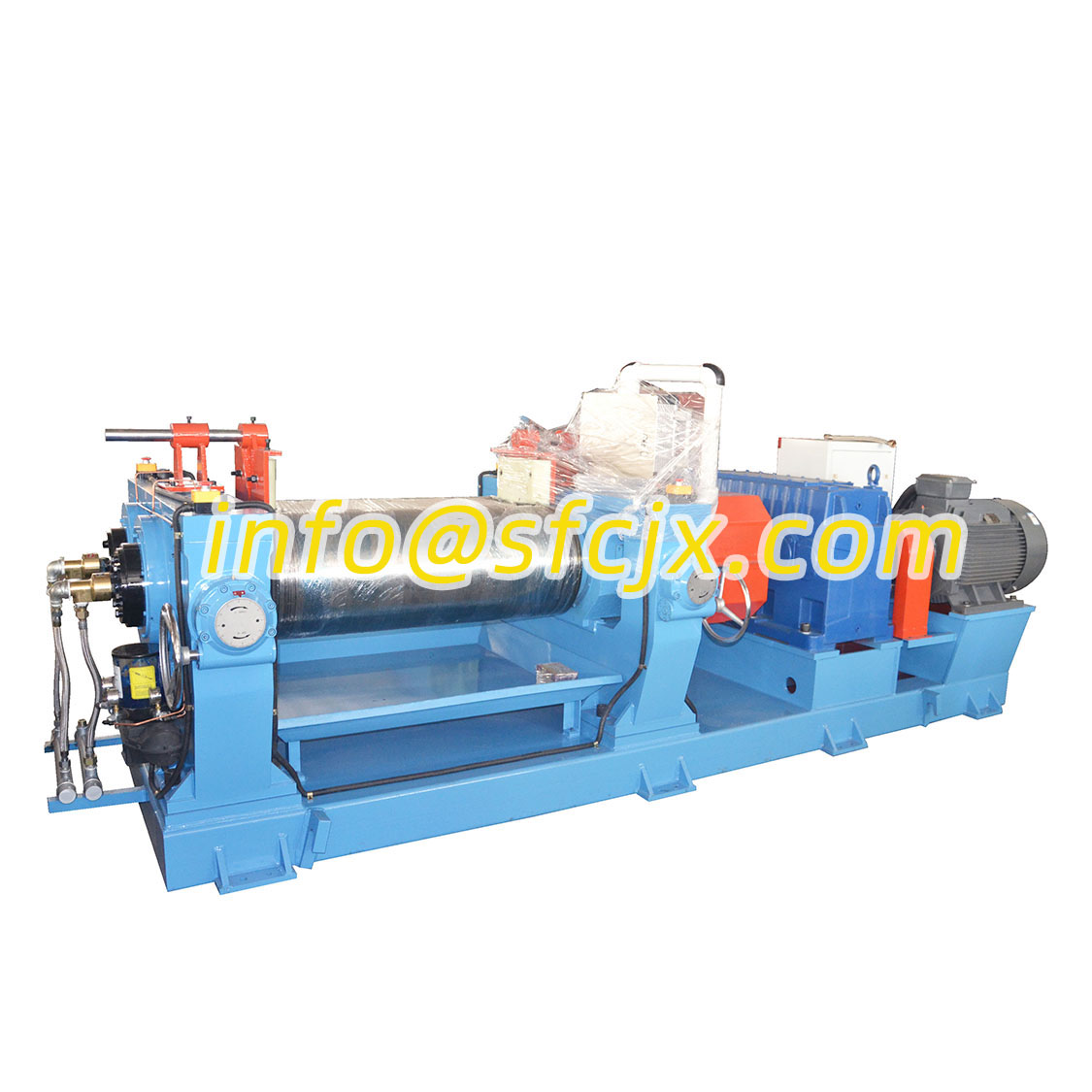

This rubber mixing machine ensures the perfect and uniform blending of natural and synthetic rubber with other raw materials. The two roll mixing mill mixing all the raw materials to the desired specifications.
Advantageous Features:
1. This two roll mixing mill can be equipped with hydraulic or mechanical device which can automatically make the rubber material be mixed over and over again. So the labor intensity and mixing time can be reduced greatly.
2. The roll nip of the mixing mill should be adjusted using manual or electrical mode.
3. To ensure the safety of staff and equipment, we install convenient button for emergency.
4. All the two roll mixing mill is we provide to you are checked after 8 hours non-stop full load operation, perfect quality and low noise. Customers can use them immediately after installation.
5. Automatic temperature and time control system, high mixing performance, uncompromising quality, easy installation and maintenance
Mode | XK-160 | XK-230 | XK-250 | XK-300 | XK-360 | XK-400 | XK-450 | XK-560 | XK-550 | XK-660 |
Working Diameter of Rolls(mm) | 160 | 230 | 250 | 300 | 360 | 400 | 450 | 560/510 | 550 | 660 |
Working Length of Rolls(mm) | 320 | 615 | 620 | 750 | 900 | 1000 | 1200 | 1530 | 1500 | 2130 |
Front Roll Surface Speed(m/min) | 8.95 | 10.21 | 14.1 | 15.1 | 16.25 | 18.65 | 24.26 | 27.72 | 27.94 | 28.6 |
Friction Ratio | 1:1.35 | 1:1.19 | 1:1.17 | 1:1.25 | 1:1.25 | 1:1.27 | 1:1.27 | 1:1.2 | 1:1.22 | 1:1.24 |
Max. nip(mm) | 4.5 | 7 | 8 | 10 | 10 | 10 | 15 | 15 | 15 | 15 |
Capacity per Batch(kg) | 1-2 | 6-10 | 8~15 | 15~20 | 20~25 | 18-35 | 25-50 | 35~50 | 50~60 | 165 |
Motor Power(KW) | 5.5 | 15 | 18.5 | 22 | 30 | 37 | 55 | 90 | 110 | 245 |
